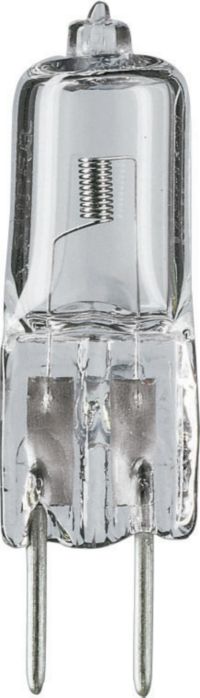

Capsuleline 75W GY6.35 12V CL 4000h 1CT
|
|
 |
Product Ref.: 40216550
EAN: 8711500402165
|
|
Single-ended low-voltage halogen capsule giving crisp white halogen light
Product Features- Sturdy, low-pressure lamps with UV-Block glass (IEC 357)
- Gas-filled (≤2.5 bar) lamps can be used in luminaires without a front glass in accordance with IEC 598
- Axial filament for higher light output in combination with luminaires and a uniform beam
- Excellent colour rendering
- Universal burning position
Product Benefits- Low-pressure technology allows use in luminaires without front glass
Application- Task lighting and decorative applications in homes, shops, hotels and restaurants
|
|
|
|
Philips Code
|
|
|
|
13101
|
|
|
|
|
|
|
Cap-Base
|
|
|
|
GY6.35
|
|
|
|
|
|
|
Cap-Base Information
|
|
|
|
15
|
|
|
|
|
|
|
Bulb
|
|
|
|
T4
|
|
|
|
|
|
|
Bulb Finish
|
|
|
|
Clear
|
|
|
|
|
|
|
Burning Position
|
|
|
|
any
|
|
|
|
|
|
|
Rated Lifetime (hours)
|
|
|
|
4000 hr
|
|
|
|
|
|
|
Rated Lifetime (years)
|
|
|
|
4 an
|
|
|
|
|
|
|
Colour Rendering Index
|
|
|
|
100 Ra8
|
|
|
|
|
|
|
Colour Temperature
|
|
|
|
3000 K
|
|
|
|
|
|
|
Colour Temperature Technical
|
|
|
|
3000 K
|
|
|
|
|
|
|
Lamp Luminous Flux
|
|
|
|
1575 Lm
|
|
|
|
|
|
|
Lamp Luminous Efficacy
|
|
|
|
18.8 Lm/W
|
|
|
|
|
|
|
Rated Luminous Flux
|
|
|
|
1400 Lm
|
|
|
|
|
|
|
Lamp Wattage
|
|
|
|
75 W
|
|
|
|
|
|
|
Technical Lamp Power
|
|
|
|
75.0 W
|
|
|
|
|
|
|
Voltage
|
|
|
|
12 V
|
|
|
|
|
|
|
Lamp Current
|
|
|
|
6.25 A
|
|
|
|
|
|
|
Dimmable
|
|
|
|
yes
|
|
|
|
|
|
|
Rated Wattage
|
|
|
|
75.0 W
|
|
|
|
|
|
|
Starting Time
|
|
|
|
0.01 (max) s
|
|
|
|
|
|
|
Warm-up Time to 60% Light Outp
|
|
|
|
instant full light
|
|
|
|
|
|
|
Mercury (Hg) Content
|
|
|
|
0.0 mg
|
|
|
|
|
|
|
Switching cycle
|
|
|
|
16000X
|
|
|
|
|
|
|
Pinch Temperature
|
|
|
|
350 (max) C
|
|
|
|
|
|
|
Bulb Temperature
|
|
|
|
900 (max) C
|
|
|
|
|
|
|
Overall Length C
|
|
|
|
44 (max) mm
|
|
|
|
|
|
|
Diameter D
|
|
|
|
12 (max) mm
|
|
|
|
|
|
|
Overall Width E
|
|
|
|
12 (min) mm
|
|
|
|
|
|
|
Light Center Length L
|
|
|
|
30 mm
|
|
|
|
|
|
|
Overall Height H
|
|
|
|
44 (min) mm
|
|
|
|
|
|
|
Order code
|
|
|
|
402165 50
|
|
|
|
|
|
|
Full product code
|
|
|
|
871150040216550
|
|
|
|
|
|
|
Full product name
|
|
|
|
Capsuleline 75W GY6.35 12V CL 4000h 1CT
|
|
|
|
|
|
|
Order product name
|
|
|
|
Caps 75W GY6.35 12V CL 4000h 1CT/10X10F
|
|
|
|
|
|
|
Pieces per pack
|
|
|
|
1
|
|
|
|
|
|
|
Packing configuration
|
|
|
|
10X10F
|
|
|
|
|
|
|
Packs per outerbox
|
|
|
|
100
|
|
|
|
|
|
|
Bar code on pack - EAN1
|
|
|
|
8711500402165
|
|
|
|
|
|
|
Bar code on intermediate packing - EAN2
|
|
|
|
8711500416995
|
|
|
|
|
|
|
Bar code on outerbox - EAN3
|
|
|
|
8711500425720
|
|
|
|
|
|
|
Logistic code(s) - 12NC
|
|
|
|
924040117101
|
|
|
|
|
|
|
ILCOS code
|
|
|
|
HSG/C/UB-75-12-GY6.35
|
|
|
|
|
|
|
Net weight per piece
|
|
|
|
2.300 gr
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
